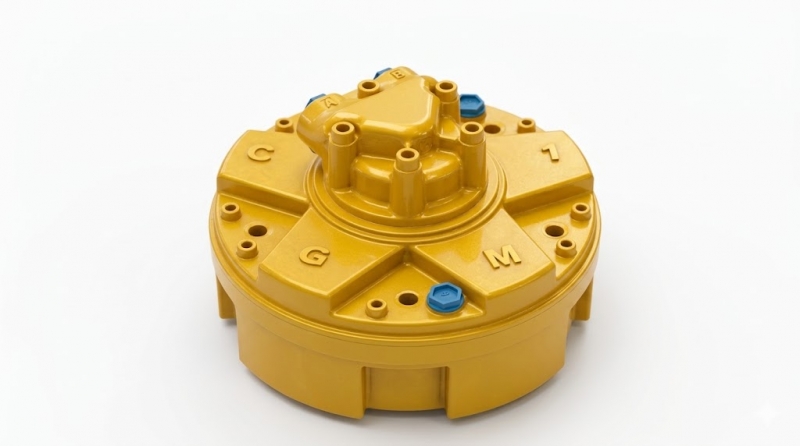

The CYGM1 series hydraulic motors are engineered for heavy-duty and high-load applications, offering a displacement range from 99 to 314 cm³/rev. This wide range enables flexible configuration across various demanding equipment, making it an ideal choice for construction machinery, mining equipment, marine systems, and industrial drive solutions.

With a high specific torque of up to 4.90 Nm/bar, the CYGM1 series delivers exceptional torque output, ensuring powerful and stable performance even under low-speed conditions. This makes it particularly suitable for winch drives, track drives, rotary systems, and other high-inertia applications where consistent torque is critical.

The motors operate at a rated pressure of 250 bar and can withstand peak pressures of up to 425 bar, providing reliable performance under shock loads and harsh working environments. Its robust internal structure and optimized design significantly enhance durability and operational stability.

In addition, the CYGM1 series supports continuous speeds up to 550 rpm and maximum speeds up to 1000 rpm, achieving an effective balance between torque output and operational efficiency. With a peak power output of up to 48 kW, it meets the performance requirements of heavy-duty machinery.

Designed with strong interchangeability, the CYGM1 series can replace mainstream international brands with minimal modification, offering customers a cost-effective solution without compromising on quality or performance.
